Schematics

From SnesWiki

Jump to: navigation, search

[ insert rough outline of how SNES components are connected ... ie. A Bus, B Bus, APU, PPU, CPU, WRAM, etc. ]


The original SNES had a daughter board for the APU.

A later revision included the APU on the main board. The layout looked like this (image in four pieces):

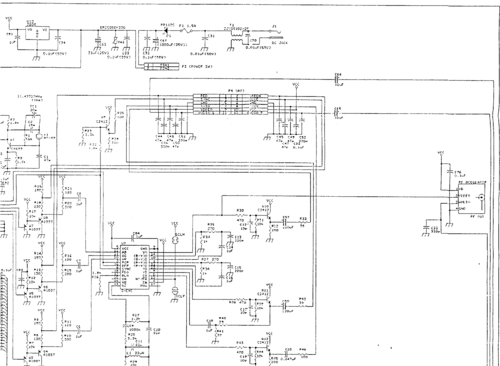

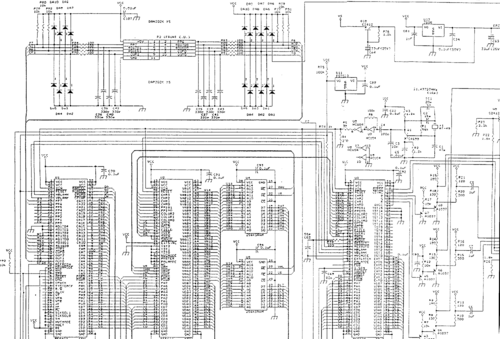

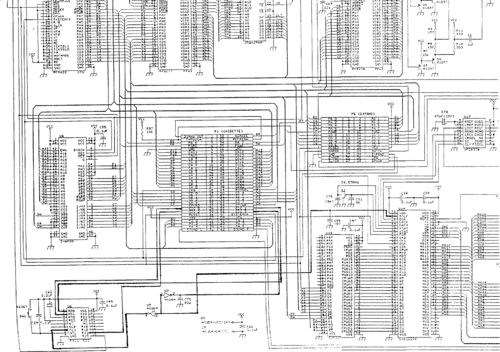

NTSC ver2, top left NTSC ver2, top right NTSC ver2, bottom left NTSC ver2, bottom right
